Induction Heater

Billet Induction Heater

Billet Induction Heater


Composition

• Tilting • Step Feeder • Conveyor • Heating Coil • Quick Eject • Pure Water System • Hyd Unit • Pyro Meter

Control panel

• Inverter • Converter • Control System • Display • Matching Part • Output Part

Easy to use, Easy to maintance

Billet Induction Heater

capacity workpiece(㎜) tilting(ton) step feeder(ton) power 3phase 60㎐(v) output efficiency(㎏/㎾)
150㎾ 2.4㎑ 25~60 1 1 380 2.2~2.7
250㎾ 2.4㎑ 25~60 1.5 1.5 380 2.0~2.5
350㎾ 2.4㎑ 25~60 2 2 380 2.0~2.5
450㎾ 2.4㎑ 35~80 2 2 440 2.2~2.7
600㎾ 2.0㎑ 35~80 2 2 600 2.2~2.7
800㎾ 2.0㎑ 35~100 2 2 600 2.2~2.7
1200㎾ 1.5㎑ 35~120 3 3 600 2.2~2.7

High Frequency Melting Furnace

High Frequency Melting Furnace


Composition

• Main Panel • Pure Unit • Engine Pump• Furnace

Control panel

• Converter • Inverter • Electric Control • Trouble Indicator • Matching Part • Matching Part

Easy to use, Easy to maintance

capacity weight(㎏) power 3phase 60㎐(v) output efficiency(㎏/㎾)
150㎾ 2.4㎑ 50~150 220~380 1.0~1.5
250㎾ 1.2㎑ 100~250 380 1.3~1.7
350㎾ 1.2㎑ 250~350 380 1.4~1.8
500㎾ 1.2㎑ 350~500 440 1.5~1.9

High Frequency Surface Hardening

High Frequency Surface Hardening


Composition

• Main Panel • Matching Part • CT Box• Control PNL • Machine Part• Pure Unit

Control panel

• Converter • Inverter • Electric Control • Trouble Indicator • Matching Part • Matching Part

Easy to use, Easy to maintance

High Frequency Surface Hardening

capacity hardening(㎜) power 3phase 60㎐(v) diameter on workpiece(㎜)
150㎾ 8.5㎑ 1.5~3 220~380 20~250
250㎾ 6㎑ 2~5 380 50~450
350㎾ 5㎑ 3~8 380 50~500
500㎾ 3㎑ 4~10 440 100~600

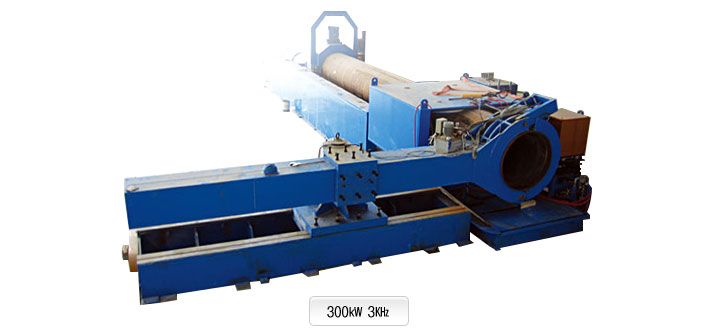

High Frequency Pipe Bending Heater

High Frequency Pipe Bending Heater


Composition

• Main Panel • Matching Part • CT Box• Control PNL • Machine Part• Pure Unit

High Frequency Pipe Bending Heater

capacity pipe thickness(㎜) power 3phase 60㎐(v) diameter(㎜)
50㎾ 8.5㎑ 10 220~380 20~100
150㎾ 6㎑ 20 380 100~250
300㎾ 3㎑ 30 380 250~450
450㎾ 3㎑ 50 440 450~1000
600㎾ 2㎑ 60 440 500~1200

High Frequency Miscellanceous Heater

High Frequency Miscellanceous Heater High Frequency Miscellanceous Heater

∧
